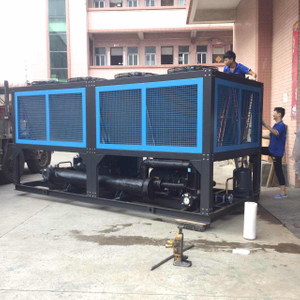

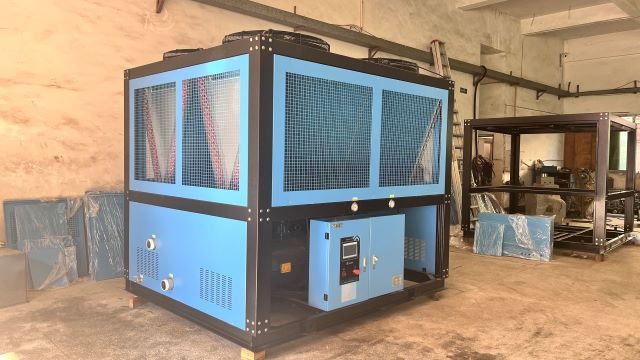

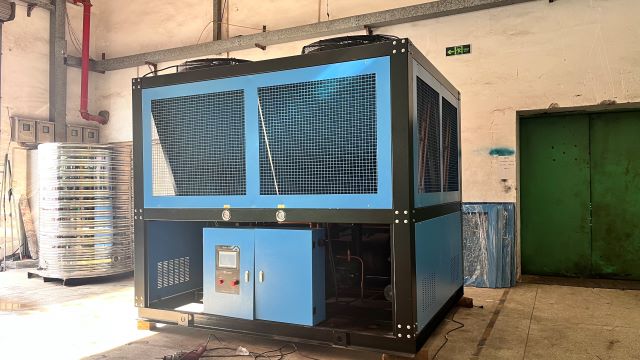

NWS-80ASCS
NASER
| Availability: | |
|---|---|
| Quantity: | |
Key Features:
Compact Design: Integrated with fans, condensers, compressors, and evaporators, air-cooled chillers are self-contained units, requiring minimal installation space.
Energy Efficiency: Advanced scroll or screw compressors, paired with optimized airflow systems, ensure reliable performance with reduced energy consumption.
Low Maintenance: Eliminates the need for cooling towers, water pumps, and piping, lowering operational and maintenance costs.
Versatile Applications: Widely used in industrial processes, HVAC systems, commercial buildings, data centers, medical facilities, and food/beverage production.
Environmentally Friendly: Modern models utilize eco-friendly refrigerants (e.g., R407C R134a) compliant with international regulations (e.g., EU F-Gas Directive).
Operation Principle:
The refrigerant absorbs heat from the process water in the evaporator, converting it into gas. The compressor then pressurizes the gas, raising its temperature. In the air-cooled condenser, fans blow ambient air over the coils, releasing heat and condensing the refrigerant back into liquid. The cycle repeats to maintain consistent cooling output.
Advantages Over Water-Cooled Systems:
No water consumption or wastewater disposal concerns.
Ideal for arid regions or indoor installations.
Simplified installation and scalability for setups.
Technical Specifications:
Cooling capacity: 10 kW to 2,000 kW (customizable).
Temperature control range: Typically -10°C to 30°C, depending on design.
Weather-resistant construction for outdoor operation in harsh climates.
Air-cooled chillers are a robust solution for industries prioritizing sustainability, operational simplicity, and adaptability to diverse environmental conditions.
NWS-80ASCS PARAMETER
Model Item | NWS-80ASCS | ||
Cooling capacity | kcal/h | 211818 | |
USRT | 70 | ||
KW | 246 | ||
Power | 3PH-380V/50Hz (can be optional) | ||
Refrigerant | Type | R407c | |
Control method | Externally balanced thermal expansion valve (Spoland, USA) | ||
Compressor | Type | Twin-screw semi-hermetic compressor (HanBell) | |
Power | KW | 60 | |
Condenser | Type | High-efficiency copper tube sheathed aluminum fin type + low-noise external rotor fan | |
Cooling air volume | m3/h | 120000 | |
Evaporator | Type | High-efficiency internally threaded copper tube: shell and tube type | |
Chilled water volume | m3/h | 42 | |
Inlet and outlet pipe | DN100 | ||
Water pump | type | centrifugal water pump | |
power KW | 7.5 | ||
Water flow m3/h | 90 | ||
lift M | 19 | ||
Control panel | Human-machine interface touch screen (Siemens PLC) | ||
Safety protection | Compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection, phase sequence/phase lack protection, exhaust overheating protection. (Bump touch screen control panel, Schneider Electric, Italian temperature control) | ||
Weight | KG | 2000 | |
Measure | MM | L3200*W1950*H2400 | |
Remarks: 1. Refrigeration capacity is based on: chilled water inlet and outlet temperature 20℃/15℃; ambient temperature 35℃.
2. Working range: Chilled water temperature range 5℃～35℃;
