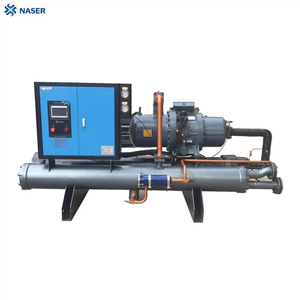

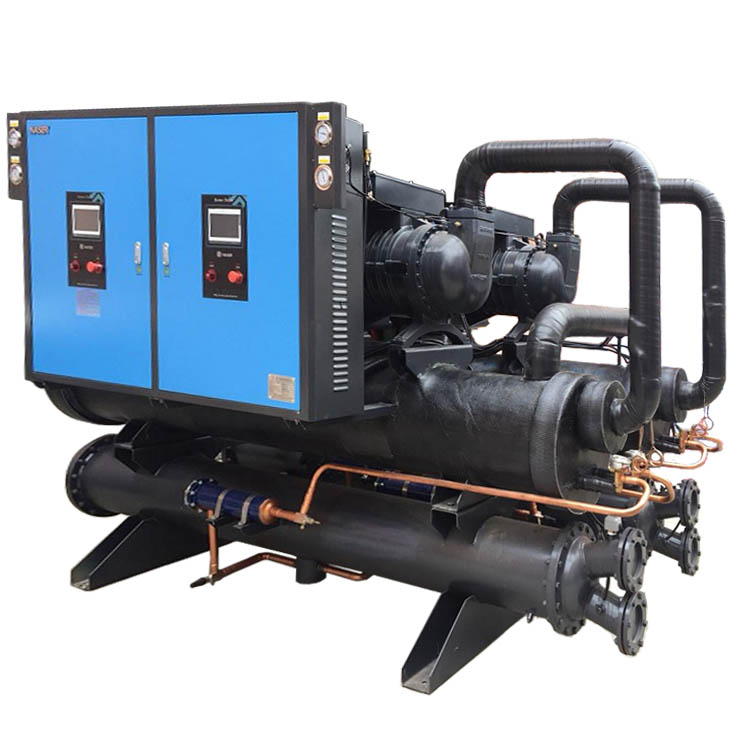

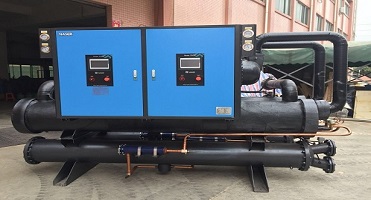

400HP double compressor double system water cooled water chiller

Key Features:

1. Superior Efficiency: Water-cooled chillers achieve higher heat exchange efficiency due to water’s superior thermal conductivity compared to air, resulting in lower energy consumption per ton of cooling.

2. High Capacity: Ideal for heavy-duty industrial and commercial applications, with cooling capacities ranging from 100 kW to over 10,000 kW.

3. Quiet Operation: Eliminates the need for loud condenser fans, making them suitable for noise-sensitive environments.

4. Long Lifespan: Protected from outdoor weather conditions, components (e.g., compressors, condensers) experience less wear, ensuring durability.

5. Flexible Configuration: Compatible with centrifugal, screw, or scroll compressors, and customizable for variable or constant flow systems.

Operation Principle:
The refrigerant absorbs heat from the process water in the evaporator, turning into gas. The compressor pressurizes the gas, raising its temperature. In the water-cooled condenser, heat is transferred to a separate cooling water loop, which is then pumped to a cooling tower. There, the cooling water releases heat to the atmosphere through evaporation before recirculating. The refrigerant condenses back to liquid, completing the cycle.

Advantages Over Air-Cooled Systems:

• Higher Energy Efficiency: Lower operating costs in continuous-use scenarios (e.g., data centers, manufacturing plants).

• Stable Performance: Less affected by ambient temperature fluctuations, ensuring consistent cooling even in hot climates.

• Space-Saving: Compact unit design (no large condenser fans), though cooling towers require external installation space.
